♻️ Flows#
PyWa has built-in support for WhatsApp Flows, allowing you to create rich, structured interactions with your users directly within WhatsApp.

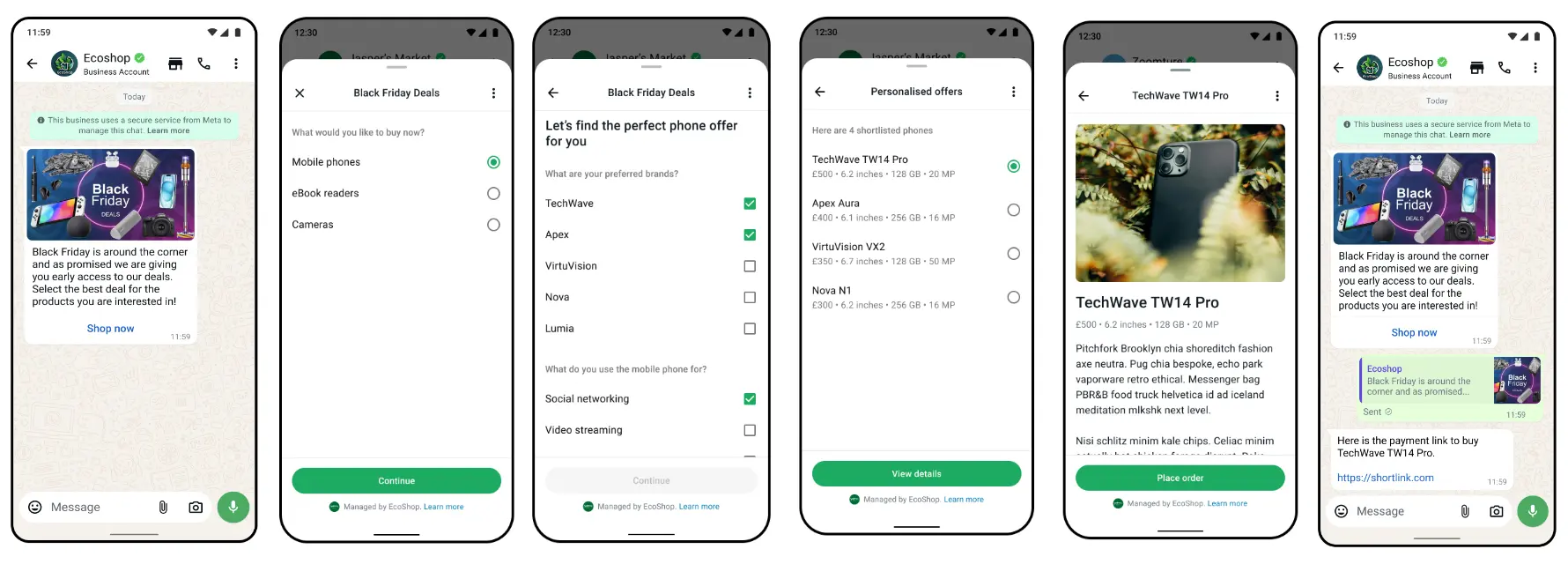

Flows let your users perform complex tasks — such as booking appointments, browsing products, or completing sign-up forms — without leaving the chat interface.
Working with WhatsApp Flows in PyWa involves four main steps:
Creating the Flow
Sending the Flow
Handling Flow requests and responding to them (for dynamic flows)
Receiving the Flow Completion update
Creating Flow#
- First you need to create the flow, give it a name and set the categories by calling
create_flow(): You can also create the flows using the WhatsApp Flow Builder.
1from pywa import WhatsApp
2from pywa.types import FlowCategory
3
4# WhatsApp Business Account ID (WABA) is required
5wa = WhatsApp(..., waba_id="1234567890123456")
6
7created = wa.create_flow(
8 name="My New Flow",
9 categories=[FlowCategory.CUSTOMER_SUPPORT, FlowCategory.SURVEY]
10)
11print(wa.get_flow(created.id))
12
13# FlowDetails(id='1234567890123456', name='My New Flow', status=FlowStatus.DRAFT, ...)
Now you can start building the flow structure.
Tip
You can also provide the flow json when creating the flow by passing the flow_json argument to create_flow(), but here we treat it separately.
1created = wa.create_flow(
2 name="My New Flow",
3 categories=[FlowCategory.CUSTOMER_SUPPORT, FlowCategory.SURVEY],
4 flow_json=FlowJSON(...) # The flow json to create,
5 publish=True, # If you want to publish the flow immediately
6)
A flow is collection of screens containing components. screens can exchange data with each other and with your server.
Flow can be static: all the components settings are predefined and no interaction is required from your server. Or it can be dynamic: your server can respond to screen actions and determine the next screen to display (or close the flow) and the data to provide to it.
Available components#
Every component on the FlowJSON has a corresponding class in pywa.types.flows:
Category |
Types |
|---|---|
Static elements |
|
Collect data |
|
Navigation |
|
Conditional Component Rendering |
|
Actions |
|
Helpers |
|
Here is an example of static flow:
1from pywa.types.flows import *
2
3flow = FlowJSON(
4 version=7.0,
5 screens=[
6 Screen(
7 id="NEWSLETTER_SUBSCRIPTION",
8 title="Subscribe to our Newsletter",
9 terminal=True,
10 layout=Layout(
11 children=[
12 full_name := TextInput(
13 name="full_name",
14 label="Full Name",
15 input_type=InputType.TEXT,
16 required=True,
17 ),
18 email := TextInput(
19 name="email",
20 label="Email Address",
21 input_type=InputType.EMAIL,
22 required=True,
23 ),
24 is_subscribed := OptIn(
25 name="is_subscribed",
26 label="Subscribe to our newsletter",
27 required=True,
28 on_click_action=OpenURLAction(
29 url="https://pywa.readthedocs.io/",
30 ),
31 ),
32 Footer(
33 label="Subscribe",
34 on_click_action=CompleteAction(
35 payload={
36 "full_name": full_name.ref,
37 "email": email.ref,
38 "is_subscribed": is_subscribed.ref,
39 },
40 ),
41 ),
42 ],
43 ),
44 )
45 ],
46)
Which is the equivalent of the following flow json:
1{
2 "version": "7.0",
3 "screens": [
4 {
5 "id": "NEWSLETTER_SUBSCRIPTION",
6 "title": "Subscribe to our Newsletter",
7 "terminal": true,
8 "layout": {
9 "type": "SingleColumnLayout",
10 "children": [
11 {
12 "type": "TextInput",
13 "name": "full_name",
14 "label": "Full Name",
15 "input-type": "text",
16 "required": true
17 },
18 {
19 "type": "TextInput",
20 "name": "email",
21 "label": "Email Address",
22 "input-type": "email",
23 "required": true
24 },
25 {
26 "type": "OptIn",
27 "name": "is_subscribed",
28 "label": "Subscribe to our newsletter",
29 "required": true,
30 "on-click-action": {
31 "name": "open_url",
32 "url": "https://pywa.readthedocs.io/"
33 }
34 },
35 {
36 "type": "Footer",
37 "label": "Subscribe",
38 "on-click-action": {
39 "name": "complete",
40 "payload": {
41 "full_name": "${form.full_name}",
42 "email": "${form.email}",
43 "is_subscribed": "${form.is_subscribed}"
44 }
45 }
46 }
47 ]
48 }
49 }
50 ]
51}

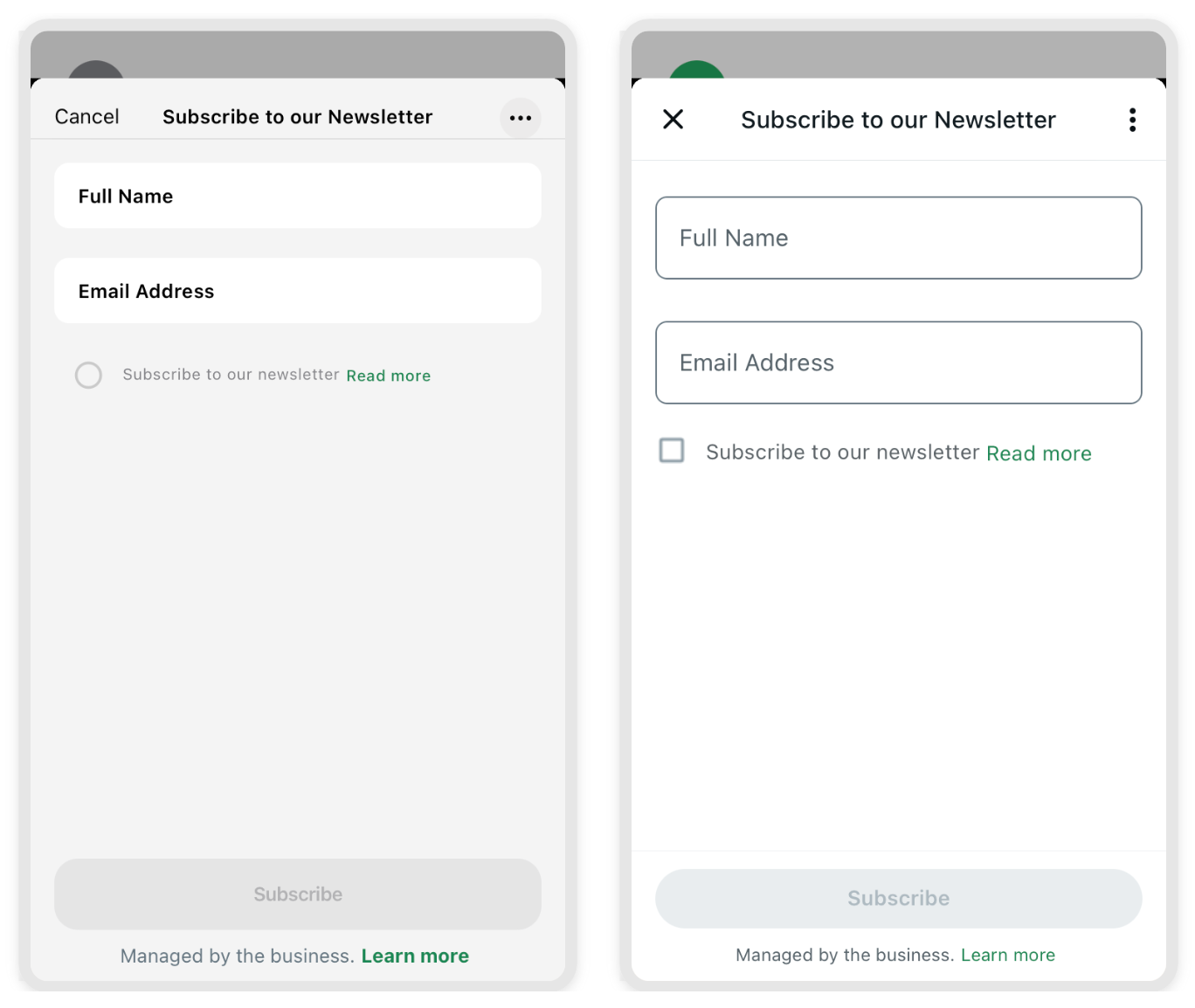

And this is how it looks like on WhatsApp (iOS/Android):
After you have the flow json, you can update the flow with update_flow_json():
1from pywa import WhatsApp
2from pywa.types.flows import *
3
4your_flow_json = FlowJSON(...) # keep edit your flow
5
6if __name__ == "__main__":
7 wa = WhatsApp(..., waba_id="1234567890123456") # waba id is required for creating flows
8 # created = wa.create_flow(name="Newsletter Flow", categories=[FlowCategory.CONTACT_US])
9
10 res = wa.update_flow_json(flow_id=created.id, flow_json=newsletter_flow)
11 if not res: # If the flow was not updated successfully
12 print("Validation errors:")
13 for error in res.validation_errors:
14 print(error)
The flow_json argument can be FlowJSON, a dict, json str, json file pathlib.Path or a file-like object.
You can get the FlowDetails of the flow with get_flow():
1flow = wa.get_flow(created.id)
2print(flow)
Or getting all the flows with get_flows():
1flows = wa.get_flows()
2for flow in flows:
3 print(flow)
To test your flow, you need to send it to a user.
Sending Flows#
Flow is just a FlowButton attached to a message.
Let’s see how to send text message with flow:
1from pywa import WhatsApp
2from pywa.types import FlowButton
3
4wa = WhatsApp(...)
5
6wa.send_message(
7 to="1234567890",
8 text="Hi, You need to finish your sign up!",
9 buttons=FlowButton(
10 title="Finish Sign Up", # The button title that will appear on the bottom of the message
11 flow_id="1234567890123456", # The `ewsletter_flow` flow id from above
12 mode=FlowStatus.DRAFT, # If the flow is in draft mode, you must specify the mode as `FlowStatus.DRAFT`.
13 flow_action_type=FlowActionType.NAVIGATE, # You tell WhatsApp what to do when the user clicks the button.
14 flow_action_screen="SIGN_UP", # The screen id to navigate to when the user clicks the button.
15 )
16)
Getting Flow Completion message#
When the user completes the flow, you will receive a request to your webhook with the payload you sent when you completed the flow.
Here is how to listen to flow completion update:
1from pywa import WhatsApp
2from pywa.types import FlowCompletion
3
4wa = WhatsApp(...)
5
6@wa.on_flow_completion
7def on_flow_completion(_: WhatsApp, flow: FlowCompletion):
8 print(f"The user {flow.from_user.name} just completed the flow!")
9 print(flow.response)
The .response attribute is the payload you sent when you completed the flow.
Note
if you using PhotoPicker or DocumentPicker components, you will receive the files inside the flow completion .response.
You can constract them into pywa media objects by using get_media():
1from pywa import WhatsApp, types
2
3wa = WhatsApp(...)
4
5@wa.on_flow_completion
6def on_flow_completion(_: WhatsApp, flow: FlowCompletion):
7 img = flow.get_media(types.Image, key="profile_pic")
8 img.download()
Handling Flow Requests#
WhatsApp Flows can be dynamic, allowing your server to handle user actions and respond in real-time. For example, you can validate inputs, transition to new screens based on business logic, or complete the interaction dynamically.
Important
Because dynamic flow requests and responses contain sensitive data, Meta requires them to be encrypted using WhatsApp Business Encryption.
Before handling dynamic flows, you must generate and upload an RSA key pair:
Generate a private key (you will be prompted to set a password):
openssl genrsa -des3 -out private.pem 2048
Export the public key from your private key:
openssl rsa -in private.pem -outform PEM -pubout -out public.pem
Upload the public key to Meta using the
set_business_public_key()method:1from pywa import WhatsApp 2 3wa = WhatsApp(...) 4wa.set_business_public_key(open("public.pem").read())
Provide the private key to your
WhatsAppclient initialization:1from pywa import WhatsApp 2 3wa = WhatsApp(..., business_private_key=open("private.pem").read())
Install the required dependencies (pywa uses the cryptography library for decryption/encryption):
pip3 install "pywa[cryptography]"
Let’s see an example of a dynamic flow:
1from pywa.types.flows import *
2
3flow = FlowJSON(
4 version="7.2",
5 data_api_version="3.0",
6 routing_model={
7 "SIGN_IN": ["SIGN_UP", "FORGOT_PASSWORD"],
8 "SIGN_UP": ["TERMS_AND_CONDITIONS"],
9 "FORGOT_PASSWORD": [],
10 "TERMS_AND_CONDITIONS": [],
11 },
12 screens=[
13 signin_screen := Screen(
14 id="SIGN_IN",
15 title="Sign in",
16 terminal=True,
17 success=True,
18 data=[
19 welcome := ScreenData(
20 key="welcome",
21 example="Welcome back! Please sign in to continue.",
22 ),
23 default_email := ScreenData(
24 key="default_email",
25 example="johndoe@gmail.com",
26 ),
27 ],
28 layout=Layout(
29 children=[
30 TextSubheading(text=welcome.ref),
31 signin_email := TextInput(
32 name="email",
33 label="Email address",
34 input_type=InputType.EMAIL,
35 required=True,
36 init_value=default_email.ref,
37 ),
38 signin_password := TextInput(
39 name="password",
40 label="Password",
41 input_type=InputType.PASSWORD,
42 required=True,
43 ),
44 EmbeddedLink(
45 text="Don't have an account? Sign up",
46 on_click_action=NavigateAction(next=Next(name="SIGN_UP")),
47 ),
48 EmbeddedLink(
49 text="Forgot password",
50 on_click_action=NavigateAction(
51 next=Next(name="FORGOT_PASSWORD"),
52 )
53 ),
54 Footer(
55 label="Sign in",
56 on_click_action=DataExchangeAction(
57 payload={
58 "email": signin_email.ref,
59 "password": signin_password.ref,
60 }
61 ),
62 ),
63 ]
64 ),
65 ),
66 signup_screen := Screen(
67 id="SIGN_UP",
68 title="Sign up",
69 layout=Layout(
70 children=[
71 first_name := TextInput(
72 name="first_name",
73 label="First Name",
74 input_type=InputType.TEXT,
75 required=True,
76 ),
77 last_name := TextInput(
78 name="last_name",
79 label="Last Name",
80 input_type=InputType.TEXT,
81 required=True,
82 ),
83 signup_email := TextInput(
84 name="email",
85 label="Email address",
86 input_type=InputType.EMAIL,
87 init_value=signin_screen / signin_email.ref,
88 required=True,
89 ),
90 signup_password := TextInput(
91 name="password",
92 label="Set password",
93 input_type=InputType.PASSWORD,
94 init_value=signin_screen / signin_password.ref,
95 required=True,
96 ),
97 confirm_password := TextInput(
98 name="confirm_password",
99 label="Confirm password",
100 helper_text="Min 8 chars, incl. 1 number & 1 special character.",
101 input_type=InputType.PASSWORD,
102 init_value=signin_screen / signin_password.ref,
103 required=True,
104 ),
105 terms_agreement := OptIn(
106 name="terms_agreement",
107 label="I agree with the terms.",
108 on_click_action=NavigateAction(
109 next=Next(type="screen", name="TERMS_AND_CONDITIONS")
110 ),
111 required=True,
112 ),
113 offers_acceptance := OptIn(
114 name="offers_acceptance",
115 label="I would like to receive news and offers.",
116 ),
117 Footer(
118 label="Sign up",
119 on_click_action=DataExchangeAction(
120 payload={
121 "first_name": first_name.ref,
122 "last_name": last_name.ref,
123 "email": signup_email.ref,
124 "password": signup_password.ref,
125 "confirm_password": confirm_password.ref,
126 "terms_agreement": terms_agreement.ref,
127 "offers_acceptance": offers_acceptance.ref,
128 }
129 ),
130 ),
131 ]
132 ),
133 ),
134 forgot_password_screen := Screen(
135 id="FORGOT_PASSWORD",
136 title="Forgot password",
137 terminal=True,
138 success=True,
139 layout=Layout(
140 children=[
141 TextBody(text="Enter your email address for your account and we'll send a reset link. The single-use link will expire after 24 hours."),
142 forgot_password_email := TextInput(
143 name="email",
144 label="Email address",
145 input_type=InputType.EMAIL,
146 init_value=signin_screen / signin_email.ref,
147 required=True,
148 ),
149 Footer(
150 label="Send reset link",
151 on_click_action=DataExchangeAction(
152 payload={"email": forgot_password_email.ref}
153 ),
154 ),
155 ]
156 ),
157 ),
158 Screen(
159 id="TERMS_AND_CONDITIONS",
160 title="Terms and conditions",
161 layout=Layout(
162 children=[
163 TextHeading(text="Our Terms"),
164 TextSubheading(text="Data usage"),
165 TextBody(
166 text="Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed vitae odio dui. Praesent ut nulla tincidunt, scelerisque augue malesuada, volutpat lorem. Aliquam iaculis ex at diam posuere mollis. Suspendisse eget purus ac tellus interdum pharetra. In quis dolor turpis. Fusce in porttitor enim, vitae efficitur nunc. Fusce dapibus finibus volutpat. Fusce velit mi, ullamcorper ac gravida vitae, blandit quis ex. Fusce ultrices diam et justo blandit, quis consequat nisl euismod. Vestibulum pretium est sem, vitae convallis justo sollicitudin non. Morbi bibendum purus mattis quam condimentum, a scelerisque erat bibendum. Nullam sit amet bibendum lectus."
167 ),
168 TextSubheading(text="Privacy policy"),
169 TextBody(
170 text="Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed vitae odio dui. Praesent ut nulla tincidunt, scelerisque augue malesuada, volutpat lorem. Aliquam iaculis ex at diam posuere mollis. Suspendisse eget purus ac tellus interdum pharetra. In quis dolor turpis. Fusce in porttitor enim, vitae efficitur nunc. Fusce dapibus finibus volutpat. Fusce velit mi, ullamcorper ac gravida vitae, blandit quis ex. Fusce ultrices diam et justo blandit, quis consequat nisl euismod. Vestibulum pretium est sem, vitae convallis justo sollicitudin non. Morbi bibendum purus mattis quam condimentum, a scelerisque erat bibendum. Nullam sit amet bibendum lectus."
171 ),
172 ]
173 ),
174 ),
175 ],
176)
Which is the equivalent of the following flow json:
1{
2 "version": "7.2",
3 "data_api_version": "3.0",
4 "routing_model": {
5 "SIGN_IN": [
6 "SIGN_UP",
7 "FORGOT_PASSWORD"
8 ],
9 "SIGN_UP": [
10 "TERMS_AND_CONDITIONS"
11 ],
12 "FORGOT_PASSWORD": [],
13 "TERMS_AND_CONDITIONS": []
14 },
15 "screens": [
16 {
17 "id": "SIGN_IN",
18 "title": "Sign in",
19 "data": {
20 "welcome": {
21 "type": "string",
22 "__example__": "Welcome back! Please sign in to continue."
23 },
24 "default_email": {
25 "type": "string",
26 "__example__": "johndoe@gmail.com"
27 }
28 },
29 "terminal": true,
30 "success": true,
31 "layout": {
32 "type": "SingleColumnLayout",
33 "children": [
34 {
35 "type": "TextSubheading",
36 "text": "${data.welcome}"
37 },
38 {
39 "type": "TextInput",
40 "name": "email",
41 "label": "Email address",
42 "input-type": "email",
43 "required": true,
44 "init-value": "${data.default_email}"
45 },
46 {
47 "type": "TextInput",
48 "name": "password",
49 "label": "Password",
50 "input-type": "password",
51 "required": true
52 },
53 {
54 "type": "EmbeddedLink",
55 "text": "Don't have an account? Sign up",
56 "on-click-action": {
57 "name": "navigate",
58 "next": {
59 "name": "SIGN_UP",
60 "type": "screen"
61 },
62 "payload": {}
63 }
64 },
65 {
66 "type": "EmbeddedLink",
67 "text": "Forgot password",
68 "on-click-action": {
69 "name": "navigate",
70 "next": {
71 "name": "FORGOT_PASSWORD",
72 "type": "screen"
73 },
74 "payload": {}
75 }
76 },
77 {
78 "type": "Footer",
79 "label": "Sign in",
80 "on-click-action": {
81 "name": "data_exchange",
82 "payload": {
83 "email": "${form.email}",
84 "password": "${form.password}"
85 }
86 }
87 }
88 ]
89 }
90 },
91 {
92 "id": "SIGN_UP",
93 "title": "Sign up",
94 "layout": {
95 "type": "SingleColumnLayout",
96 "children": [
97 {
98 "type": "TextInput",
99 "name": "first_name",
100 "label": "First Name",
101 "input-type": "text",
102 "required": true
103 },
104 {
105 "type": "TextInput",
106 "name": "last_name",
107 "label": "Last Name",
108 "input-type": "text",
109 "required": true
110 },
111 {
112 "type": "TextInput",
113 "name": "email",
114 "label": "Email address",
115 "input-type": "email",
116 "required": true,
117 "init-value": "${screen.SIGN_IN.form.email}"
118 },
119 {
120 "type": "TextInput",
121 "name": "password",
122 "label": "Set password",
123 "input-type": "password",
124 "required": true,
125 "init-value": "${screen.SIGN_IN.form.password}"
126 },
127 {
128 "type": "TextInput",
129 "name": "confirm_password",
130 "label": "Confirm password",
131 "input-type": "password",
132 "required": true,
133 "helper-text": "Min 8 chars, incl. 1 number & 1 special character.",
134 "init-value": "${screen.SIGN_IN.form.password}"
135 },
136 {
137 "type": "OptIn",
138 "name": "terms_agreement",
139 "label": "I agree with the terms.",
140 "required": true,
141 "on-click-action": {
142 "name": "navigate",
143 "next": {
144 "name": "TERMS_AND_CONDITIONS",
145 "type": "screen"
146 },
147 "payload": {}
148 }
149 },
150 {
151 "type": "OptIn",
152 "name": "offers_acceptance",
153 "label": "I would like to receive news and offers."
154 },
155 {
156 "type": "Footer",
157 "label": "Sign up",
158 "on-click-action": {
159 "name": "data_exchange",
160 "payload": {
161 "first_name": "${form.first_name}",
162 "last_name": "${form.last_name}",
163 "email": "${form.email}",
164 "password": "${form.password}",
165 "confirm_password": "${form.confirm_password}",
166 "terms_agreement": "${form.terms_agreement}",
167 "offers_acceptance": "${form.offers_acceptance}"
168 }
169 }
170 }
171 ]
172 }
173 },
174 {
175 "id": "FORGOT_PASSWORD",
176 "title": "Forgot password",
177 "terminal": true,
178 "success": true,
179 "layout": {
180 "type": "SingleColumnLayout",
181 "children": [
182 {
183 "type": "TextBody",
184 "text": "Enter your email address for your account and we'll send a reset link. The single-use link will expire after 24 hours."
185 },
186 {
187 "type": "TextInput",
188 "name": "email",
189 "label": "Email address",
190 "input-type": "email",
191 "required": true,
192 "init-value": "${screen.SIGN_IN.form.email}"
193 },
194 {
195 "type": "Footer",
196 "label": "Send reset link",
197 "on-click-action": {
198 "name": "data_exchange",
199 "payload": {
200 "email": "${form.email}"
201 }
202 }
203 }
204 ]
205 }
206 },
207 {
208 "id": "TERMS_AND_CONDITIONS",
209 "title": "Terms and conditions",
210 "layout": {
211 "type": "SingleColumnLayout",
212 "children": [
213 {
214 "type": "TextHeading",
215 "text": "Our Terms"
216 },
217 {
218 "type": "TextSubheading",
219 "text": "Data usage"
220 },
221 {
222 "type": "TextBody",
223 "text": "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed vitae odio dui. Praesent ut nulla tincidunt, scelerisque augue malesuada, volutpat lorem. Aliquam iaculis ex at diam posuere mollis. Suspendisse eget purus ac tellus interdum pharetra. In quis dolor turpis. Fusce in porttitor enim, vitae efficitur nunc. Fusce dapibus finibus volutpat. Fusce velit mi, ullamcorper ac gravida vitae, blandit quis ex. Fusce ultrices diam et justo blandit, quis consequat nisl euismod. Vestibulum pretium est sem, vitae convallis justo sollicitudin non. Morbi bibendum purus mattis quam condimentum, a scelerisque erat bibendum. Nullam sit amet bibendum lectus."
224 },
225 {
226 "type": "TextSubheading",
227 "text": "Privacy policy"
228 },
229 {
230 "type": "TextBody",
231 "text": "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed vitae odio dui. Praesent ut nulla tincidunt, scelerisque augue malesuada, volutpat lorem. Aliquam iaculis ex at diam posuere mollis. Suspendisse eget purus ac tellus interdum pharetra. In quis dolor turpis. Fusce in porttitor enim, vitae efficitur nunc. Fusce dapibus finibus volutpat. Fusce velit mi, ullamcorper ac gravida vitae, blandit quis ex. Fusce ultrices diam et justo blandit, quis consequat nisl euismod. Vestibulum pretium est sem, vitae convallis justo sollicitudin non. Morbi bibendum purus mattis quam condimentum, a scelerisque erat bibendum. Nullam sit amet bibendum lectus."
232 }
233 ]
234 }
235 }
236 ]
237}
This flow has 4 screens:
SIGN_IN- The first screen that the user sees when they open the flow. It has a form to sign in and links to sign up and forgot password screens.SIGN_UP- The screen that the user sees when they click on the sign up link in the sign in screen. It has a form to sign up and a link to the terms and conditions screen.FORGOT_PASSWORD- The screen that the user sees when they click on the forgot password link in the sign in screen. It has a form to send a reset link to the user’s email address.TERMS_AND_CONDITIONS- The screen that the user sees when they click on the terms and conditions link in the sign up screen. It has the terms and conditions text.
Let’s dive into the main concepts of dynamic flows:
data_api_version: This is the version of the data API that the flow uses. It is used to determine how the data is exchanged between the client and the server. The current version is
3.0.routing_model: This is a dictionary that defines the flow routing. It maps screen ids to other screen ids that can be navigated to from the current screen. For example, from the
SIGN_INscreen, you can navigate to theSIGN_UPorFORGOT_PASSWORDscreens. You can read more about Routing Model in developers.facebook.com.data: This is a list of
ScreenDataobjects that define the data that should be provided to the screen when navigating to it. This data can be used to pre-fill the form fields or provide other information to the user. For example, in theSIGN_INscreen, we have awelcomescreen data that provides a welcome message and adefault_emailscreen data that provides a default email address to pre-fill the email field (you will see why we need it later).ref: This is a reference to the screen data or the component that stores an user input. It is used to refer to the data inside the flow. For example, in the
SIGN_INscreen, we have asignin_emailcomponent that has a reference to the email field. We can use this reference to get the value of the email field when the user submits the form.on_click_action: This is an action that is executed when the user clicks on a button or a link. It can be a
DataExchangeAction,NavigateAction,CompleteActionorOpenURLAction. For example, in theSIGN_INscreen, we have aFootercomponent with a label “Sign in” that has anDataExchangeActionthat sends the email and password to the server when the user clicks on it. the server will then validate the credentials and respond with the next screen to display or close the flow.
We need to update the flow with this json using update_flow_json() and then tell WhatsApp to send the requests to our server using update_flow_metadata():
1from pywa import WhatsApp
2
3wa = WhatsApp(...)
4
5wa.update_flow_metadata(
6 flow_id="1234567890123456", # The `sign_in_flow` flow id from above
7 endpoint_uri="https://your-server.com/flow"
8)
Let’s send the flow. this time with an image:
1from pywa import WhatsApp
2from pywa.types import FlowButton, FlowActionType, FlowStatus
3
4wa = WhatsApp(...)
5
6wa.send_image(
7 to="1234567890",
8 image="https://t3.ftcdn.net/jpg/03/82/73/76/360_F_382737626_Th2TUrj9PbvWZKcN9Kdjxu2yN35rA9nU.jpg",
9 caption="Hi, You need to finish your sign up!",
10 buttons=FlowButton(
11 title="Finish Sign Up",
12 flow_id="1234567890123456", # The `sign_in_flow` flow id from above
13 mode=FlowStatus.DRAFT,
14 flow_action_type=FlowActionType.DATA_EXCHANGE, # This time we want to exchange data
15 )
16)
Here we set the flow_action_type to FlowActionType.DATA_EXCHANGE since we want to exchange data with the server.
So, when the user opens the flow, we will receive a request to our server to provide the screen to open and the data to provide to it.
1import datetime
2import re
3import dataclasses
4from pywa import WhatsApp
5from pywa.types import FlowRequest, FlowResponse
6
7@dataclasses.dataclass
8class User:
9 email: str
10 password: str
11 first_name: str
12 last_name: str
13 offer_acceptance: bool
14 forget_password_requested: datetime.datetime | None = None
15 is_signed_in: bool = False
16
17
18class DemoDatabase:
19 def __init__(self):
20 self.users: dict[str, User] = {}
21
22 def get_user(self, email: str) -> User | None:
23 return self.users.get(email)
24
25 def add_user(self, user: User) -> None:
26 self.users[user.email] = user
27
28 def is_forget_password_available(self, email: str) -> bool:
29 user = self.get_user(email)
30 if not user:
31 return True
32 if user.forget_password_requested and user.forget_password_requested > (datetime.datetime.now() - datetime.timedelta(hours=24)):
33 return False
34 return True
35
36db = DemoDatabase()
37
38wa = WhatsApp(
39 ...,
40 business_private_key=open("private.pem").read(), # provide your business private key
41)
42
43@wa.on_flow_request(endpoint="/signin")
44def handle_signin_flow(_: WhatsApp, req: FlowRequest) -> FlowResponse:
45 raise NotImplementedError(req)
46
47
48@handle_signin_flow.on_init
49def on_init(_: WhatsApp, req: FlowRequest) -> FlowResponse:
50 return req.respond(
51 screen=signin_screen,
52 data={
53 welcome.key: "Welcome to our service! Please sign in to continue.",
54 default_email.key: "",
55 },
56 )
57
58
59@handle_signin_flow.on_data_exchange(screen=signin_screen)
60def on_sign_in(_: WhatsApp, req: FlowRequest) -> FlowResponse:
61 user = db.get_user(req.data["email"])
62 if not user:
63 return req.respond(
64 screen=signin_screen,
65 error_message="User not found. Please sign up first.",
66 data={
67 welcome.key: "Welcome to our service! Please sign in to continue.",
68 default_email.key: "",
69 },
70 )
71 if user.password != req.data["password"]:
72 return req.respond(
73 screen=signin_screen,
74 error_message="Incorrect password. Please try again.",
75 data={
76 welcome.key: "Welcome to our service! Please sign in to continue.",
77 default_email.key: user.email,
78 },
79 )
80 user.is_signed_in = True
81 return req.respond(close_flow=True)
82
83
84@handle_signin_flow.on_data_exchange(screen=signup_screen)
85def on_sign_up(_: WhatsApp, req: FlowRequest) -> FlowResponse:
86 if not re.match(r"^(?=.*\d)(?=.*[^A-Za-z0-9]).{8,}$", req.data["password"]):
87 return req.respond(
88 screen=signup_screen,
89 error_message="Password must be at least 8 characters long and contain at least one number and one special character.",
90 )
91 if req.data["password"] != req.data["confirm_password"]:
92 return req.respond(
93 screen=signup_screen,
94 error_message="Passwords do not match. Please try again.",
95 )
96 user = User(
97 email=req.data["email"],
98 password=req.data["password"],
99 first_name=req.data["first_name"],
100 last_name=req.data["last_name"],
101 offer_acceptance=req.data["offers_acceptance"],
102 is_signed_in=False
103 )
104 db.add_user(user)
105 return req.respond(
106 screen=signin_screen,
107 data={
108 welcome.key: "Thank you for signing up! You can now sign in with your new account.",
109 default_email.key: user.email,
110 },
111 )
112
113@handle_signin_flow.on_data_exchange(screen=forgot_password_screen)
114def on_forgot_password(_: WhatsApp, req: FlowRequest) -> FlowResponse:
115 if not db.is_forget_password_available(req.data["email"]):
116 return req.respond(
117 screen=forgot_password_screen,
118 error_message="You can't request a password reset at this time. Please try again later.",
119 )
120 ### SEND PASSWORD RESET EMAIL HERE ###
121 return req.respond(
122 screen=signin_screen,
123 data={
124 welcome.key: "A password reset link has been sent to your email address. Please check your inbox.",
125 default_email.key: req.data["email"],
126 },
127 )
Note
If you using PhotoPicker or DocumentPicker components, and handling requests containing their data, you need
to decrypt the files using decrypt_media():
1@wa.on_flow_request(endpoint="/flow")
2def on_support_request(_: WhatsApp, req: FlowRequest) -> FlowResponse:
3 decrypted_data = req.decrypt_media(key="driver_license", index=0)
4 with open(f"media/{decrypted_data.filename}", "wb") as f:
5 f.write(decrypted_data.data)
6 ...
- Flow JSON
FlowJSONScreenScreenDataScreenDataUpdateLayoutLayoutTypeFormFormComponentTextHeadingTextSubheadingTextBodyTextCaptionRichTextFontWeightTextInputInputTypeTextAreaCheckboxGroupChipsSelectorRadioButtonsGroupMediaSizeFooterOptInDropdownEmbeddedLinkNavigationListNavigationItemNavigationItemStartNavigationItemMainContentNavigationItemEndDatePickerCalendarPickerCalendarPickerModeCalendarDayImageScaleTypePhotoPickerPhotoSourceDocumentPickerIfSwitchDataSourceDataExchangeActionNavigateActionCompleteActionUpdateDataActionOpenURLActionNextNextTypeFlowStrScreenDataRefComponentRefConditionMathExpression
- Flow Types
FlowRequestFlowRequestActionTypeFlowResponseFlowCategoryFlowDetailsFlowStatusFlowPreviewFlowJSONUpdateResultFlowValidationErrorFlowAssetFlowMetricNameFlowMetricGranularityCreatedFlowMigrateFlowsResponseMigratedFlowMigratedFlowErrorFlowResponseErrorFlowTokenNoLongerValidFlowRequestSignatureAuthenticationFailedFlowRequestDecryptedMediaFlowRequestDecryptorFlowResponseEncryptordefault_flow_request_decryptor()default_flow_response_encryptor()flow_request_media_decryptor()FlowRequestCallbackWrapper
